ローダウンスプリング VM

EnglishJapanese

Lowering springs

31600TH2010  VM GT-S
31600TH2010 VM GT-S

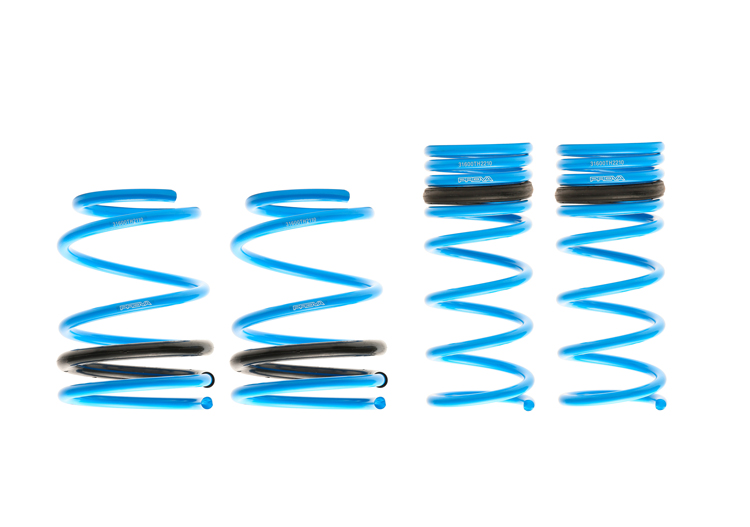

VM4 GT-S image
VM4 GT-S image

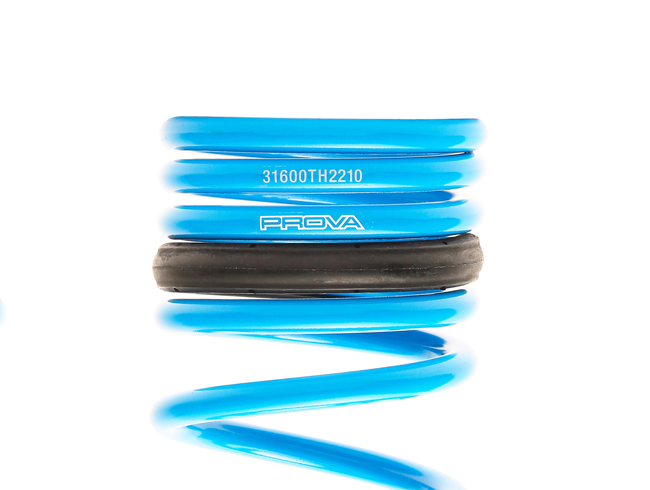

ロゴシール貼付部
ロゴシール貼付部

各車専用に設定したスポーツ・スプリングセットです。

高品質のスプリング専用鋼材を使用し、さらに入念に後処理を行うことで、長期間使用しても経年劣化、いわゆるへたりや縮みが発生せず安心して使用できます。

またスプリングの巻きピッチの狭い部分には、防音ラバーを標準装備、低速時に発生し易い接地音を低減させています。

開発に当たり徹底的に実走行テストを行うことで、純正ダンパーとのマッチングに優れた最適なレートを設定、同時に充分なストロークを確保しながらローダウン量を決めています。優れた乗り心地とスポーティなハンドリングを味わう事ができ、適度な車高ダウンにより車両のルックスを引き締めます。

VMG/VM4 LEVORG GT-S 2.0/1.6
31600TH2010 VMG/VM4 GT-S ¥:43,200(本体¥40,000) 通信販売ボタン

標準車高比: F= -16 R= -8(mm) レート: F= 5.00 R= 4.89(kgf/mm)
*GT-S ビルシュタイン装着車 用

VMG/VM4 LEVORG GT 2.0/1.6
31600TH2040 LEVORG GT ¥:43,200(本体¥40,000) 通信販売ボタン

標準車高比: F= -18 R= -10(mm) レート: F= 5.25 R= 5.67(kgf/mm)
*GT 非ビルシュタイン車 用


Prova sport lowering springs are specifically designed for each vehicle to provide exceptional performance and appearance. There is no need to compromise ride quality to lower your vehicle, as careful consideration has been taken to make these springs a truly complete solution.

High quality spring steel is employed along with precision after treatments to produce a spring that can be used without fear of sagging or shrinking. Rubber isolators are included as standard to reduce the possibility of noise from the springs at low speeds.

An intensive development process along with testing on the vehicle led to the creation of a spring that gives excellent results while retaining compatibility with OEM dampers. While the vehicle is lowered to improve handling and appearance, adequate suspension stroke is retained to preserve streetable ride quality. With these springs it is possible to obtain attractive looks, sporty handling, and complacent ride quality all at the same time.

Springs are specific to chassis type (sedan/wagon) and trim level.

For FORESTER SJG XT 2.0 DIT
31340TH2000 43,200 JPY (8% tax included)
Lowering height: F=-17 R=-10 (mm) S/P rates: F=4.17 R=4.38 (kg/mm)

For FORESTER SJ5 2.0i NA
31340TH2040 43,200 JPY (8% tax included)
Lowering height: F=-15 R=-10 (mm) S/P rates: F=4.00 R=3.75 (kg/mm)

For WRX STi GRB/GVB Spec C
31231TH0010 43,200 JPY (8% tax included)
Lowering height: F=-25 R=-18(mm) S/P rates: F=5.45 R=5.4(kg/mm)

For WRX STi GRB/GRF, GVB/GVF
31230TH0010 43,200 JPY (8% tax included)
Lowering height: F=-20 R=-15(mm) S/P rates: F=4.47 R=4.2(kg/mm)

For IMPREZA GH8 S-GT
31230TH2010 43,200 JPY (8% tax included)
Lowering height: F=-25 R=-15(mm) S/P rates: F=3.45 R=3.01(kg/mm)

For IMPREZA GH2/3/6/7 NA
31230TH2050 43,200 JPY (8% tax included)
Lowering height: F=-20 R=-15(mm)*AWD S/P rates: F=2.82 R=2.65(kg/mm)

For IMPREZA GDA WRX C-
31223TH1010 43,200 JPY (8% tax included)
Lowering height: F=-38 R=-25(mm) S/P rates: F=3.25 R=2.7(kg/mm)

For IMPREZA GDB STi C-
31222TH1010 43,200 JPY (8% tax included)
Lowering height: F=-38 R=-25(mm) S/P rates: F=4.5 R=4.0(kg/mm)


LEGACY BL 43,200 JPY
LEGACY BP 43,200 JPY
LEGACY BE RSK 43,200 JPY
LEGACY BH GT-B 43,200 JPY
FORESTER SH XT 43,200 JPY
*Each 8% tax included.
